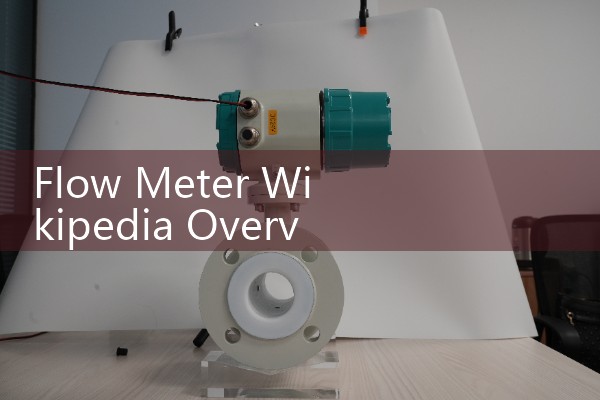

Flow Meter Overview: Fluid Dynamics, Engineering Layouts, and Calibration Standards
Quick Answer: For most industrial flow metering tasks, start with pipe size, fluid conductivity, temperature, pressure, and required accuracy. Magnetic flow meters suit water and wastewater from DN15 to DN1200. Coriolis mass flow meters give direct mass flow in kg/h for oil, gas, and chemical batching. Calibration traceable to ISO/IEC 17025 keeps total measurement uncertainty below 0.2 percent in many contracts.
Fluid Dynamics Rules for Flow Meter Sizing
Fluid velocity changes with pipe diameter, pressure drop, and fluid density. A magnetic flow meter works best when the liquid has a minimum conductivity of 5 µS/cm. For demineralized water or some solvents, a Coriolis meter or an ultrasonic meter may be a better fit.
Vortex flow meters respond to flow velocity and need a Reynolds number above 20,000 for stable shedding. In steam and compressed air lines, internal PT100 sensors compensate temperature. The 4-20 mA HART output sends flow rate to a PLC or a paperless recorder.
Here is the thing. Many sizing errors start with wrong flow range. A magnetic flow meter sized too large loses signal linearity below 0.3 m/s. A vortex meter sized too small may not shed properly at low flow. Silver Instruments application engineers ask for normal flow, minimum flow, and maximum flow before selecting any meter.
Engineering Layouts That Prevent Early Failure
Straight pipe runs matter more than many site teams expect. In practice, a magnetic flow meter needs 5D upstream and 3D downstream from a valve or elbow. A vortex flow meter often needs 15D upstream and 5D downstream when a control valve sits before the meter.
Coriolis mass flow meters are less sensitive to upstream flow profile. But they can trap gas bubbles in horizontal lines. Install the sensor in a vertical pipe with upward flow for dairy, beer, and CIP chemicals. That layout flushes gas out of the measuring tubes.
We have seen this on customer sites many times. A seawater desalination plant in Vietnam placed a magnetic flow meter too close to a pump discharge. The meter reading jumped by 4 percent after every pump start. Moving the meter 7D downstream fixed the instability.
Calibration Standards in Industrial Practice
Every flow meter sold for custody transfer, billing, or batch control should carry a calibration certificate. At Silver Instruments, the factory calibration bench is traceable to ISO/IEC 17025. Each Coriolis meter goes through a wet calibration on water or oil across 10 percent, 50 percent, and 100 percent of flow span.
Repeatability matters as much as absolute accuracy. A Coriolis mass flow meter in a diesel loading skid may show 0.1 percent of rate repeatability. A magnetic flow meter in a water treatment plant may show 0.5 percent of reading. These are different classes of measurement. The purchase order should state which standard applies.
For oil and gas packages in the Middle East, ATEX Zone 1 certification is often mandatory. For food and beverage sites, a 3A sanitary connection and CIP temperature rating become the main criteria. Calibration and hazardous area certificates must match the site classification.
Product Types for Common Industrial Applications
Magnetic flow meters fit water, wastewater, acids, caustic, and slurry lines. No moving parts means low maintenance. Use a PTFE liner and titanium electrodes for seawater and desalination brine. Use a hard rubber liner with stainless steel electrodes for potable water and treated effluent.
Coriolis mass flow meters
Ultrasonic flow meters suit large pipes and temporary flow surveys. Clamp on models can measure outside a DN1000 pipe without cutting the line. They also work for chilled water and district cooling audits.
Vortex flow meters cover steam, saturated steam, compressed air, and some light hydrocarbon gas. Integrated PT100 and pressure compensation produce mass flow for steam networks.
Oval gear flow meters handle diesel, fuel oil, and hydraulic oil transfer. They work well at viscosities up to 2000 cP. A paint manufacturer in Southeast Asia uses a DN25 oval gear meter for solvent batching because air bubbles do not stop the positive displacement count.
Thermal mass flow meters measure biogas, compressed air, and flare gas. They need a known gas composition because thermal conductivity changes with gas type.
Regional Use Cases and Site Conditions
Different regions ask for different documentation and performance. A water utility in Chile may need a magnetic flow meter on a DN300 raw water line with 4-20 mA HART output and a data logger. A palm oil refinery in Indonesia may need a Coriolis meter for crude palm oil at 80 °C and 120 cP.
In Australia, mining slurry lines often require a magnetic flow meter with a ceramic liner and a high abrasion resistance. Seawater desalination plants in the Middle East use magnetic flow meters on brine discharge and Coriolis meters on antiscalant dosing.
African fuel distributors use oval gear meters on truck loading skids. These units need simple totalization and local pulse output. Silver Instruments supplies a compact digital display with a pulse output card for this role.
FAQ: Five Critical Questions
What is the minimum fluid conductivity for a magnetic flow meter? Most magnetic flow meters need 5 µS/cm. Some models operate at 3 µS/cm but check the electrode material and liner first.
Which flow meter gives direct mass flow without density compensation? A Coriolis mass flow meter measures mass flow directly in kg/h. Use it for LPG, fuel oil, and chemical batching.
How long should the straight pipe run be for a vortex flow meter installation? Install 15D upstream and 5D downstream when a control valve or elbow sits before the meter. More straight run improves the vortex signal.
Can one flow meter handle both clean water and sludge? Yes for electromagnetic flow meters with a nonstick PTFE liner and corrosion resistant electrodes. High solids above 30 percent require special grounding rings.
What calibration documents should we ask for before shipment? Ask for a factory calibration certificate traceable to ISO/IEC 17025. For Coriolis meters request zero point, full scale, and repeatability data.
Quotation and Technical Support
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will reply with a model selection and price from Silver Instruments or Silver Automation Instruments. For urgent site support call Tel: +86-25-68650347. WhatsApp is +86-25-52155837. WeChat is +86 15365082610.
Our main products cover Coriolis mass flow meters, magnetic flow meters, ultrasonic flow meters, vortex flow meters, oval gear flow meters, thermal mass flow meters, pressure transmitters, and paperless recorders. We supply end users and distributors in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
