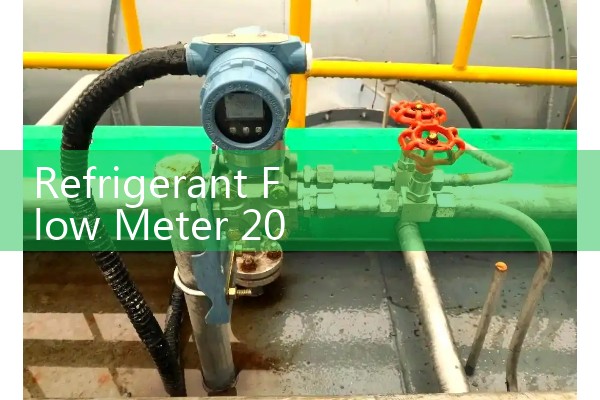

Refrigerant Flow Meter 20 Bar: Reliable Component Matching for Condenser Coils
Quick Answer: For refrigerant mass flow measurement in condenser coil matching at 20 bar, a Coriolis mass flow meter is the most reliable choice. It measures mass flow directly, independent of density changes or phase shift, and outputs density and temperature alongside the flow signal. The Silver Instruments Coriolis series handles line pressures up to 40 bar, operates from -50 to +200 degrees Celsius, and provides 4-20 mA HART plus RS485 Modbus. Tell us your refrigerant type, operating pressure, pipe size, and required flow range for a matched model recommendation.
Why Refrigerant Flow Data Improves Condenser Coil Selection
Condenser coil manufacturers and system integrators often oversize coils because they lack reliable refrigerant mass flow data. A flow meter installed on the refrigerant line, right before the condenser or after the expansion valve, gives you exact kg/h values under real load conditions. This lets you size the coil surface and tube passes to actual performance, not to a safety margin that inflates cost.
We have seen a chiller manufacturer in Thailand reduce coil material cost by 12 percent after they added a Coriolis meter to their test bench. They ran R410A at 18 to 22 bar discharge pressure and saw that the mass flow varied by 8 percent between morning and afternoon because of ambient temperature swing. Without the meter, they would have missed that variation entirely.
20 Bar Rating: When It Is Enough and When It Is Not
Many commercial refrigeration systems run compressor discharge pressures between 15 and 22 bar with R404A, R410A, or R32. A flow meter with a 20 bar nominal rating works for the liquid line after the receiver or the condenser outlet. But discharge gas often spikes above 25 bar during pull down or hot pulldown, especially in tropical countries like Nigeria, Indonesia, or Mexico. Here is the thing: we recommend selecting a meter with at least 1.5 times your maximum operating pressure to avoid fatigue on the sensor tubes.
Silver Instruments Coriolis meters use stainless steel 316L twin tubes with a burst pressure tested above 100 bar. The standard flange rating is PN40, which covers your 20 bar requirement with a generous margin. For ammonia systems or CO2 cascade, we offer higher pressure classes on request. Send us your peak pressure, not just the nominal rating, and we will verify the compatibility.
Direct Mass Flow: Why Compensated Volume Meters Struggle with Refrigerants
Vortex and turbine meters measure velocity and infer volume flow. Refrigerants change density with every degree of temperature and every bar of pressure. A vortex meter reading 10 m3/h on the liquid line might represent 10.5 kg/h or 8.2 kg/h depending on subcooling. In condenser coil matching, a 20 percent error in mass flow pushes you into the wrong tube circuit design.
A Coriolis meter from Silver Instruments outputs kg/h directly. It does not need PT100 compensation or pressure transmitter correction. The meter also delivers density reading in kg/m3 and temperature in degrees Celsius on the same 4-20 mA loop. For two phase refrigerant flow after the expansion valve, you need to place the meter in the fully liquid section. Most engineers skip this part but we always check the bubble point margin before suggesting a location.
Component Matching: Signal Integration and Pipe Sizes
Condenser coil
Pipe sizes for refrigerant circuits range from DN6 to DN25 for single circuit condensing units up to 50 kW cooling capacity. We stock DN3, DN6, DN10, DN15, and DN25 Coriolis mass flow meters with Tri-Clamp or threaded G connections. If you are running a larger capacity system, our inline meters go up to DN150. For a 20 bar, DN15 liquid line handling R32 at 45 degrees Celsius condensing temperature, typical mass flow is 300 to 800 kg/h. The SIL-COR015 (DN15 Coriolis) measures that range within 0.1 percent accuracy of reading. Our team can pre configure the span and alarm outputs to match your PLC or data logger.
How to Order a Flow Meter for Your Condenser Coil Project
We ship to Australia, Southeast Asia, Middle East, Latin America, and Africa. A standard 24 V DC powered Coriolis meter with a local display and 20 bar rating leaves our Nanjing facility within 7 working days. For larger orders, we provide test reports, material certificates, and calibration data traceable to ISO 17025.
Tell us four things when you reach out: refrigerant fluid, operating pressure in bar, temperature in degrees Celsius, pipe size in DN, and the flow range in kg/h or litres per minute. You can email [email protected], call +86-25-68650347, message us on WhatsApp at +86-25-52155837, or add our WeChat at +86 15365082610. We will propose a meter model, connection type, and signal output that fits your condenser coil matching rig. Response time is usually under 24 hours.
Frequently Asked Questions About Refrigerant Flow Meters for 20 Bar Condenser Coil Work
Can I use a Coriolis meter right after the condenser outlet where pressure is 20 bar?
Yes, as long as the fluid remains in a single liquid phase. Place the meter in the liquid line with adequate subcooling, typically 3 to 5 Kelvin, to prevent flash gas. The SIL-COR series handles up to 40 bar, so 20 bar is well within the safe range.
What accuracy can we expect when measuring R410A mass flow?
Our standard Coriolis meters deliver plus minus 0.1 to 0.2 percent of rate for liquids. For R410A in liquid phase at 20 bar and 40 degrees Celsius, you can trust the mass flow reading to within a few kg/h, which is enough for precise coil matching calculations.
Do you supply flow meters with ATEX or IECEx certification for flammable refrigerants?
Yes, we offer ATEX Zone 1 and Zone 2 certified Coriolis mass flow meters for hydrocarbons like R290 propane and R600a isobutane. Mention the refrigerant type and zone classification in your inquiry so we include the correct certification package.
How does the meter handle vibration from the compressor?
Coriolis meters are inherently immune to vibration because they detect the Coriolis force on the oscillating tubes. However, we suggest installing dampeners or flexible connections if the vibration amplitude exceeds 1 g. In most condenser coil test labs, normal pipe supports are sufficient.
What is the lead time for a DN15 Coriolis meter rated 20 bar?
Standard DN15 meters with 20 bar rating and 4-20 mA HART are in stock. Lead time is 5 to 7 working days after order confirmation. Express freight to Dubai, Singapore, or Istanbul adds 3 to 5 days.
