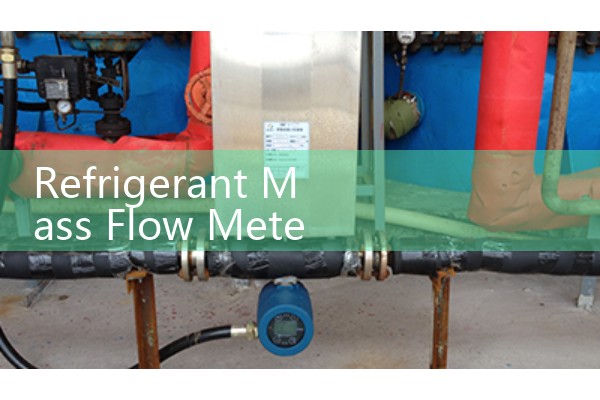

Refrigerant Mass Flow Meter: Why Direct Mass Trumps Volume in Thermal Energy Audits
Quick Answer: A refrigerant mass flow meter measures kg/h directly. It ignores temperature, pressure, and phase changes. For thermal energy audits, mass flow gives you true refrigerant charge, real cooling capacity, and verifiable COP. Volume-based meters drift with density. That drift can cause a 10 to 30 percent error in your energy balance.
A chiller plant in Malaysia runs 24/7. The audit report says the system COP is 5.2. But the plant manager suspects the number is wrong. He asks us to check the flow measurement. The audit team used a clamp-on ultrasonic meter. It reported volume flow in m3/h. They converted volume to mass using an assumed refrigerant density. That density comes from a pressure-enthalpy chart. At 40 degree Celsius condensing temperature, a small pressure error changes density by 2 percent. At part load, the error jumps. The mass flow number was off by 14 percent. The real COP was 4.5. That is a big gap when you are trying to justify a chiller retrofit.
We see this pattern often. A volume flow meter converts a velocity signal into volumetric flow. Then the control system or the auditor converts that into mass flow. R134a at the compressor discharge is not the same as R134a at the evaporator inlet. A vortex meter or a turbine meter cannot see that difference. A Coriolis mass flow meter can.
Why Volume Flow Fails in Refrigerant Measurements
Refrigerant changes state. It moves between liquid, vapour, and two-phase flow. A volume flow meter assumes a single phase. Even a small amount of flash gas in the liquid line creates a large volume. A vortex meter measures the total volume. It cannot tell you how much of that is liquid refrigerant. You need mass for the energy equation: Q = m dot multiplied by delta H. Without true mass flow, your Q is a guess.
Density varies. R410A at 30 bar and 35 degree Celsius has a liquid density around 980 kg/m3. Drop the pressure to 20 bar and the density falls to 910 kg/m3. A volume meter gives the same reading in both cases if the flow velocity stays the same. But the actual mass of refrigerant moving through the pipe has dropped by 7 percent. In a 500 kW chiller, that is a 35 kW error in cooling capacity. That error hides in the audit report. It makes the plant look more efficient than it really is.
We tested this in a food cold storage facility in Vietnam last year. The system used R404A. A turbine meter on the liquid line showed stable volume flow. The customer trusted that number. We installed a Silver Instruments Coriolis meter in series. At 80 percent load, the mass flow difference was 9 percent. At 40 percent load on a Sunday night, the difference hit 22 percent. The turbine meter could not handle the lower density at low head pressure. The plant was losing capacity and no one knew.
The Direct Mass Advantage
A Coriolis mass flow meter measures mass directly. It does not need pressure compensation. It does not need temperature compensation. It does not care if the refrigerant is subcooled liquid or superheated vapour. Two tubes oscillate. The Coriolis force twists the tubes in proportion to mass flow. The meter outputs kg/h, density, and temperature. All from one device with no moving parts in the flow stream.
In a thermal energy audit, you connect the meter to the liquid line after the condenser. You get real-time mass flow. You pair that with temperature sensors at the evaporator inlet and outlet. You calculate enthalpy difference from refrigerant property tables. Multiply mass flow by enthalpy difference. You get cooling capacity in kW. No density assumptions. No pressure-based corrections. The uncertainty drops below 0.2 percent of rate for the flow measurement alone. That is the level of accuracy a reliable audit needs.
Here is the thing. Auditors often work on existing plants. Pipes can be DN20 to DN150. Insulation covers the pipe. Space is tight. A Silver Instruments micro-bend Coriolis meter with a DN15 or DN25 connection fits into small liquid lines. It ignores vibrations from nearby compressors. Our model with ATEX Zone 1 certification works in ammonia refrigeration plants in the Middle East. The same meter can handle R717, R744, or glycol brines. You do not need a different meter when the refrigerant changes.
Thermal Energy Audits Demand Precision
The goal of an audit is to find savings. A 1 percent error in flow can mask a 5 percent efficiency gap. You cannot optimise what you cannot measure. We have worked with energy service companies in Thailand and Brazil. They tell us the same story. When they switch from a strap-on ultr
_600x400.jpg)
Let me give you a specific case. A paint manufacturer in Southeast Asia ran two 300 kW chillers. The audit using a volume flow meter showed everything was normal. The plant still had high electricity bills. We lent them a Silver Instruments dual-tube Coriolis meter. They measured mass flow on the chilled water side and the refrigerant side. The water-side mass flow matched the chiller rating. The refrigerant-side mass flow was 12 percent lower. The difference was refrigerant leakage past the compressor seals. Fixing that saved 90,000 USD a year in power. The volume meter missed it completely.
For energy audits, we recommend a Coriolis meter with a local display showing kg/h and totalised mass in kg. A 4 to 20 mA HART output sends mass flow to the building management system. Modbus RTU also works if you need to log data every second. Silver Instruments offers models with an integrated PT100 temperature sensor. You get mass flow and temperature from one device. That simplifies the audit setup and reduces potential leak points.
Practical Selection Criteria for Refrigerant Mass Flow Meters
Start with the pipe size. Our refrigerant mass flow meters come in DN10, DN15, DN20, DN25, DN40, and DN50. Smaller sizes suit direct expansion systems. Larger sizes work on flooded evaporator circuits or ammonia plants.
Know your minimum and maximum flow. A chiller running at 10 percent load has a low mass flow. Coriolis meters have excellent turndown. Our standard models offer 20:1. It means a meter with a 500 kg/h upper range reads accurately down to 25 kg/h. That covers part load conditions without switching ranges.
Check the refrigerant type. R134a, R410A, R407C, R513A, R1234ze, R290, R717. Silver Instruments Coriolis meters use 316L stainless steel wetted parts. They are compatible with HFCs, HFOs, and natural refrigerants. For ammonia, specify the fully welded titanium option. No elastomers. No leak paths.
Consider the ambient environment. Many plant rooms exceed 45 degree Celsius. Our electronics are rated for 55 degree Celsius ambient. The sensor works from minus 40 to 125 degree Celsius process temperature. In Saudi Arabia or Northern Australia, that matters.
Send us your pressure in bar, temperature in degree Celsius, pipe size DN, and minimum and maximum flow rate in kg/h. We will select the correct meter and send a quotation within 24 hours. We ship from stock to Singapore, Dubai, Johannesburg, and Guadalajara.
FAQ
Why does a mass flow meter not need pressure and temperature compensation for refrigerants?
It measures mass directly via the Coriolis principle. Mass is the property you need for energy calculations. Volume changes with pressure and temperature, mass does not. The meter also outputs density as a secondary variable, so you can verify refrigerant state.
Can I use a Coriolis meter on the suction line of a chiller?
Yes, if the refrigerant is superheated vapour. Ensure the vapour is dry. Wet suction gas can cause unstable readings. We recommend installing the meter on the liquid line after the condenser for the steadiest measurement. The liquid line provides a stable single-phase flow.
What is the typical accuracy of a Silver Instruments refrigerant mass flow meter?
For liquids, accuracy is plus or minus 0.1 to 0.2 percent of rate. For gas or vapour measurement, accuracy is plus or minus 0.5 percent of rate. This covers refrigerant vapour metering if needed. Density accuracy is plus or minus 0.5 kg/m3.
How do I connect the meter to my audit data logger?
Use the 4 to 20 mA HART output. Wire it to a channel on your logger. Set the mA span to correspond to your flow range. Alternative outputs include pulse, Modbus RS485, or a USB adapter for a laptop. We can supply a free configuration tool.
Do you offer rental units for short-term energy audits?
We discuss rental and lease options directly with energy service companies. Tell us the audit duration, refrigerant, and pipe size. We can arrange a calibrated meter with a NIST-traceable certificate. Contact us for availability in your region.
For a quote or technical discussion, email [email protected]. Call us at +86-25-68650347. Message us on WhatsApp at +86-25-52155837 or WeChat at +86 15365082610. Silver Instruments delivers direct mass flow meters that make thermal audits fast, accurate, and defensible.
