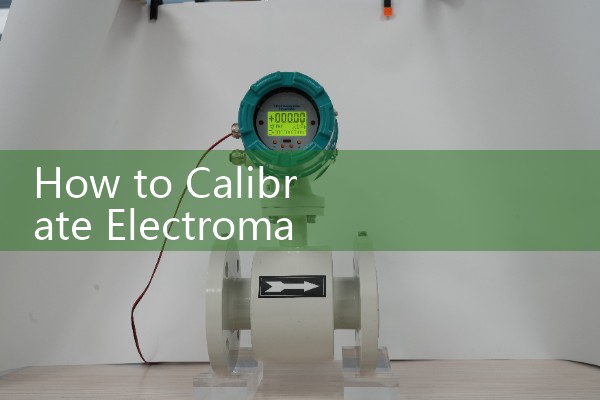

How to Calibrate Electromagnetic Flow Meter: Certified Factory Wet Flow Loop Testing Methods
Quick Answer: Silver Automation Instruments calibrates electromagnetic flow meters using a certified factory wet flow loop. The meter output is compared to a traceable reference standard at five or more flow points. A calibration certificate lists the measured error at each point and confirms the meter meets its accuracy class before shipment.
Why Electromagnetic Flow Meter Calibration Matters
An electromagnetic flow meter measures liquid velocity based on the Faraday law. The meter converts velocity to volumetric flow. Over time, liner wear, electrode coating, or electronic drift can change the reading. A calibration check tells you the real deviation at actual flow rates. We have seen a DN80 meter with coated electrodes report 4 percent high at a water recycling plant. The plant team thought they were pumping more reclaimed water than the records showed. A factory wet flow calibration caught the shift before the meter went back into service.
In practice, most engineers skip this step for small projects. The risk stays hidden when the liquid has low conductivity or the pipe has ground current. Calibration gives the plant team a reference point for future maintenance and audit. For flow meters used in billing, batch dosing, or custody transfer, a traceable calibration report is not optional.
What Is a Certified Factory Wet Flow Loop
A wet flow loop is a closed pipeline where clean water or another liquid circulates through a reference flow meter and the meter under test. The reference flow meter has traceability to an accredited laboratory. Silver Instruments uses a wet flow loop with a calibrated reference meter of known uncertainty. The loop contains a storage tank, a pump, a flow control valve, and a straight pipe section of at least 10D upstream and 5D downstream for stable velocity profile.
The factory test bench can cover a range of line sizes. Small meters from DN15 to DN300 can be tested on one loop. Larger meters up to DN600 can be tested on a separate loop with higher pump capacity. The liquid temperature stays between 15 °C and 35 °C during a standard test. For special cases, a hot water loop can run at up to 80 °C. Conductivity is kept above 20 µS/cm to match the minimum required by the electromagnetic flow meter.
Wet Flow Loop Calibration Steps
First, the meter is installed on the test pipe with the correct grounding rings. The pipe section is filled with water and all air is vented. Second, the meter runs at maximum flow for 20 minutes to stabilize electronics and remove trapped gas. Third, the test engineer sets five flow points: 0.1, 0.25, 0.5, 0.75, and 1.0 times the maximum flow rate. At each point, the reference flow rate and the meter output are recorded. For electromagnetic flow meters, the output is usually a 4-20 mA HART signal or a pulse output.
The calibration software calculates the error at each flow point. The factory adjusts the meter coefficient if the error exceeds the specified accuracy class. After adjustment, the meter runs a second test at the same points to verify that all readings fall within the specification. A final calibration certificate lists the flow rate, the meter reading, the reference reading, the error in percent, and the uncertainty of the reference standard. We store a digital copy for each serial number. If you need a reprint, contact our sales team.
What a Calibration Certificate Includes
A useful calibration certificate from Silver Automation Instruments includes more than a pass or fail statement. It shows the test standard, the liquid typ
Specific Cases Where Wet Flow Loop Calibration Helps
We have seen different applications need different calibration points. A paint manufacturer in Southeast Asia needed a DN25 electromagnetic flow meter for titanium dioxide slurry. The slurry had a viscosity of 120 cP and tended to settle. We calibrated the meter on water and then adjusted the low-flow cutoff based on the customer data. The meter has worked in batching for two years without overfill errors.
Last year a customer in Vietnam asked us to calibrate a DN100 electromagnetic flow meter for seawater reverse osmosis feed. The customer wanted a three-point certificate at 50, 100, and 150 m3/h plus a repeatability test at 100 m3/h. The meter was configured for a 4-20 mA HART signal with a totalizer pulse. We completed the test in one day and shipped the meter with the certificate inside the crate.
How to Request a Factory Calibration
Send us your liquid type, conductivity in µS/cm, pipe size in DN, flow range in m3/h, and required accuracy class. If you have a meter already installed, send the serial number and we will check the original calibration record. We can also advise if a new wet flow calibration is needed before you reorder a meter.
Contact Silver Automation Instruments at Tel: +86-25-68650347, Whatsapp: +86-25-52155837, or WeChat: +86 15365082610. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a calibration quote. We reply within one business day.
FAQ
Q: What is the difference between wet flow loop calibration and dry verification for electromagnetic flow meters?
A: Wet flow loop calibration uses a real liquid and a traceable reference meter. Dry verification checks electronic circuits and coil resistance without liquid flow. Wet calibration proves the meter reads actual flow within the stated error. Dry verification is faster but does not detect liner or electrode issues.
Q: How often should an electromagnetic flow meter be calibrated?
A: Most water and wastewater plants calibrate billing meters every 12 to 24 months. Batching and custody transfer meters often need a certificate every 12 months. If the liquid coats electrodes or the meter shows unstable readings, calibrate sooner.
Q: Can Silver Instruments calibrate a meter for brine or seawater service?
A: Yes. We can test with salt water on a separate loop when the conductivity is above 20 µS/cm. The certificate will state the test liquid and conductivity. This matters for desalination and marine applications.
Q: What information do you need for a calibration quote?
A: We need the liquid type, conductivity in µS/cm, pipe size in DN, flow range, meter model, and required accuracy class. If the meter is for ATEX Zone 1 or Zone 2, tell us the approval code so we can prepare the correct certificate.
Q: Can you calibrate a meter from another brand?
A: Yes. Silver Automation Instruments can calibrate electromagnetic flow meters from other manufacturers as a service. Send us the make, model, serial number, and flow range. We will check if our loop can match the line size and connection type.
