Flow Meter for Alcohol Sizing: ATEX-Certified Explosion-Proof Sensors for Distilleries
Quick Answer: For alcohol flow measurement in distilleries, choose a Coriolis mass flow meter with ATEX Zone 1 or Zone 2 approval. This sensor measures mass flow, density, and temperature in one unit, so you can track alcohol concentration without extra devices. Send Silver Automation Instruments your pipe size (DN15 to DN100), flow range in kg/h, and process temperature for a fast quotation.
Alcohol service in a distillery is not a simple water application. Ethanol has low electrical conductivity, a wide density range, and a low flash point. The flow meter must survive vapour and occasional washdowns. The sensor also must be explosion-proof when installed near tanks, pumps, or filling lines.
Why Standard Flow Meters Fail in Alcohol Service
High-proof ethanol has a conductivity far below 1 µS/cm. An electromagnetic flow meter cannot produce a stable reading on that fluid. We have seen a customer in Southeast Asia try a magmeter on 96 percent ethanol. The display showed zero even at full flow. That application needed a Coriolis mass flow meter instead.
Last year a customer in Vietnam asked us to replace a turbine flow meter on 94 percent alcohol. The mechanical bearing failed after three months. We supplied a SIL-CMF series Coriolis meter with ATEX Zone 1. The unit has run for over a year without service.
Vortex meters work well on steam and CIP water. They do not measure mass flow directly on alcohol unless you add density compensation. Oval gear meters handle some low-flow additive dosing jobs. But for final alcohol transfer, blending, and revenue measurement, Coriolis is the main choice.
Here is the thing. Alcohol viscosity often stays below 5 cP at room temperature. That keeps pressure loss manageable in small DN15 and DN25 sensors. The bigger risk is vapour formation, because ethanol flashes at low temperature. The meter body and the electronics must carry the correct protection concept for that zone.
ATEX Certification and Zone Selection for Distilleries
Ethanol vapour can form an explosive atmosphere. Most small and medium distilleries install flow meters in Zone 1 or Zone 2 areas. Zone 1 means an explosive gas atmosphere is likely during normal operation. Zone 2 means the vapour is present only for short periods or under abnormal conditions.
A flow meter for alcohol sizing should carry ATEX II 2G Ex db or similar marking. Silver Automation Instruments supplies Coriolis sensors with ATEX Zone 1 and Zone 2 approvals. The enclosure is flameproof. The electronics can output 4-20 mA HART, pulse, or RS485 Modbus. The temperature sensor is a PT100 built into the meter.
Recommended Silver Instruments Flow Meter Series

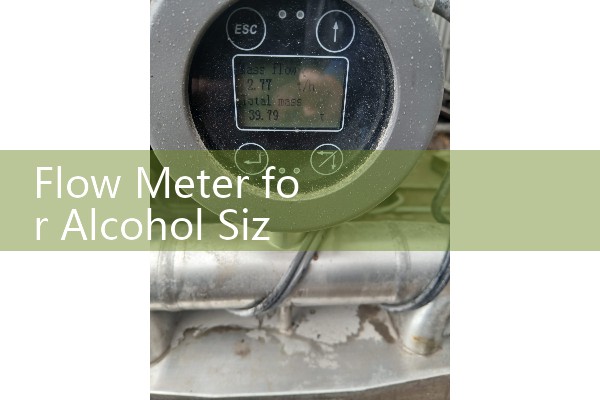

Silver Instruments SIL-CMF series Coriolis mass flow meter covers DN15 to DN100 for distillery use. Accuracy is plus or minus 0.1 percent for mass flow and plus or minus 0.0005 g/cm³ for d
_600x400.jpg)
Use the SIL-CMF series for ethanol transfer, blending, and concentration measurement. Use a SIL-VF series vortex flow meter for steam, CIP media, or hot water where an ATEX certified gas sensor is less critical. Use a SIL-OG series oval gear meter for dosing small volumes of glycerine, flavour, or colouring additives. These options cover most distillery applications without mixing untested brands.
Sizing Data You Need to Send Us
For a fast alcohol flow meter selection, send us four values. First, the pipe size in DN. Second, the normal and maximum flow rate in kg/h or litres per hour. Third, the process temperature in °C and pressure in bar. Fourth, the type of alcohol and concentration by volume. With these data we confirm the sensor body size, flange rating, and ATEX marking.
In practice, many engineers size a meter by line size only. Sizing by line size only often leads to an oversized Coriolis meter. The sensor then loses accuracy at low flow. A better method is to size for the mass flow range you actually run, not the pipe diameter.
FAQ on Alcohol Flow Meter Sizing and ATEX Sensors
Can I use an electromagnetic flow meter for ethanol?
No. Ethanol has very low conductivity, usually below 1 µS/cm for high-proof product. A magmeter needs at least 5 µS/cm in most cases. Use a Coriolis mass flow meter for ethanol transfer.
What does ATEX Zone 1 mean for a flow meter?
Zone 1 means the meter can be installed where an explosive gas atmosphere exists during normal operation. The enclosure and cable gland must also meet the same group and temperature class.
Which flow meter measures alcohol concentration directly?
A Coriolis mass flow meter measures mass flow and density at the same time. With density and temperature data, the transmitter calculates alcohol concentration by mass or volume. You do not need a separate density analyser.
What size flow meter do I need for a small distillery?
Most small gin, whiskey, and rum plants use DN15 to DN25 Coriolis meters. Flow rates often sit between 200 kg/h and 3000 kg/h. For larger transfer lines, DN40 or DN50 is common.
Are stainless steel wetted parts safe for alcohol?
Yes. 316L stainless steel works for ethanol and most food-grade alcohols. Avoid aluminium and copper for high-proof alcohol contact. PTFE or PFA liners help with cleaning and chemical resistance.
Get a Quote for an ATEX Alcohol Flow Meter
For a specific alcohol flow meter quotation, contact Silver Automation Instruments. Call +86-25-68650347, use WhatsApp at +86-25-52155837, or send a WeChat message to +86 15365082610. Tell us the alcohol type, concentration, pipe size, flow range, temperature, and zone classification. We reply with model selection, price, and lead time.
